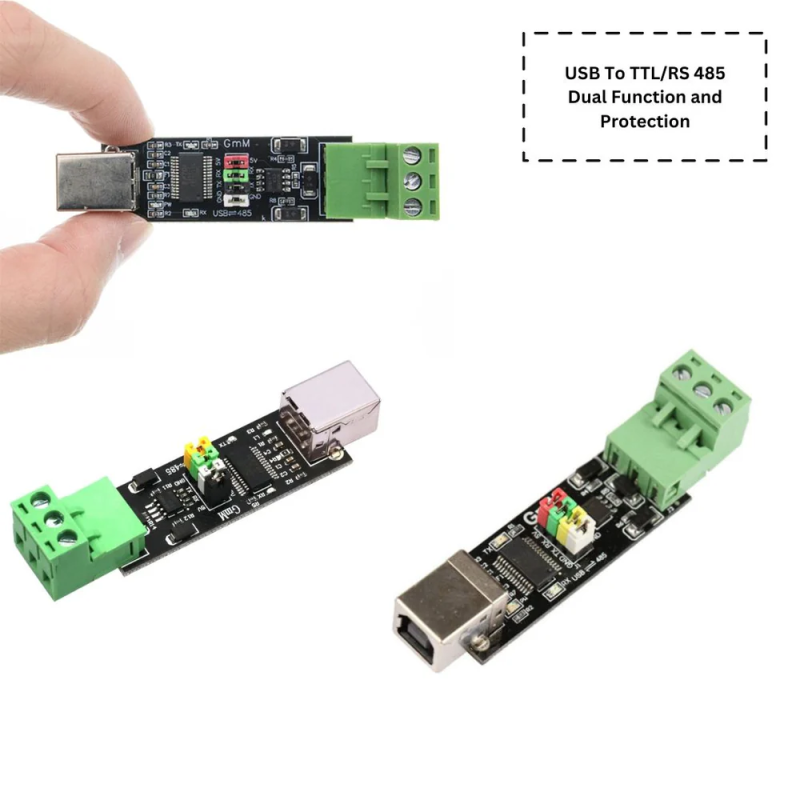

USB To TTL/RS 485 Dual Function & Protection FT232

USB2.0 Compatibility: The USB to RS485 TTL Serial Converter Adapter FT232 complies with USB2.0 standard and is backward compatible. It adheres to the standard RS485 protocol.

Direction Control and Data Flow: Features automatic data flow control with direction control, automatically distinguishing and controlling data transfer direction. Supports a wide baud rate range of 300 to 9216000bps and automatically detects the serial signal data rate.

Dual-Functionality: The adapter module serves as a dual-function device supporting multipoint connections. Each converter allows connection to 32 RS485 interface devices. It includes TVS tube interface protection and USB self-recovery protection.

Jumper Configuration: Four jumpers connect the USB interface to the RS485 interface. Removing the jumpers allows the USB interface to function as a TTL Level Serial port.

Serial Communication Conversion: Facilitates two-way serial communication signal conversion between RS485 and a personal computer USB port using a virtual serial COM port. It is self-powered via USB and utilizes FT232RL+75176 components.

Compatibility and Operating System Support: Compatible with various operating systems including Windows98/ME/2000/XP/WIN7/Vista, Linux, and Mac.

Technical Details: Features a load capacity supporting multipoint connections, with each converter allowing up to 32 RS485 interface devices. Provides interface protection with TVS tube protection and USB self-recovery protection. The device operates within a wide temperature range from -40 to 90°C and is colored black. It includes three screw terminals and supports baud rates ranging from 300 to 9216000bps.
