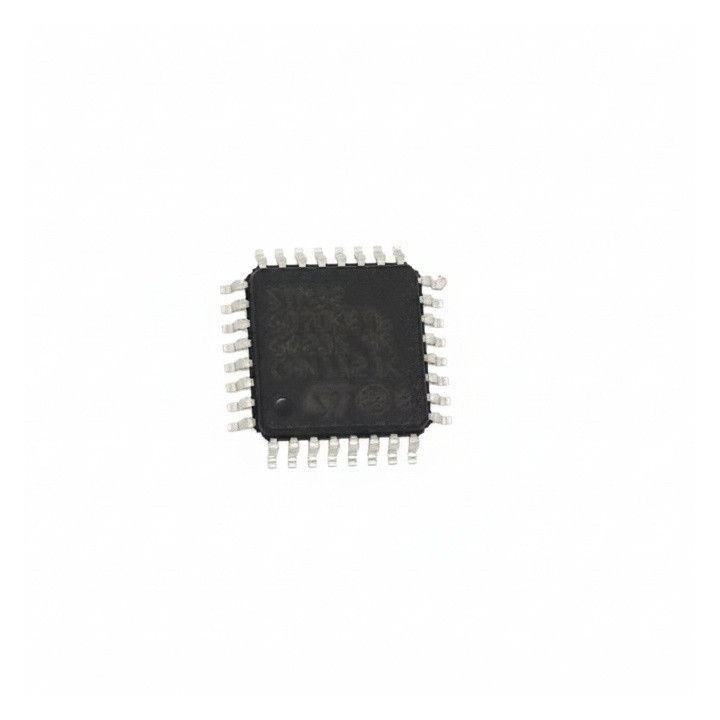

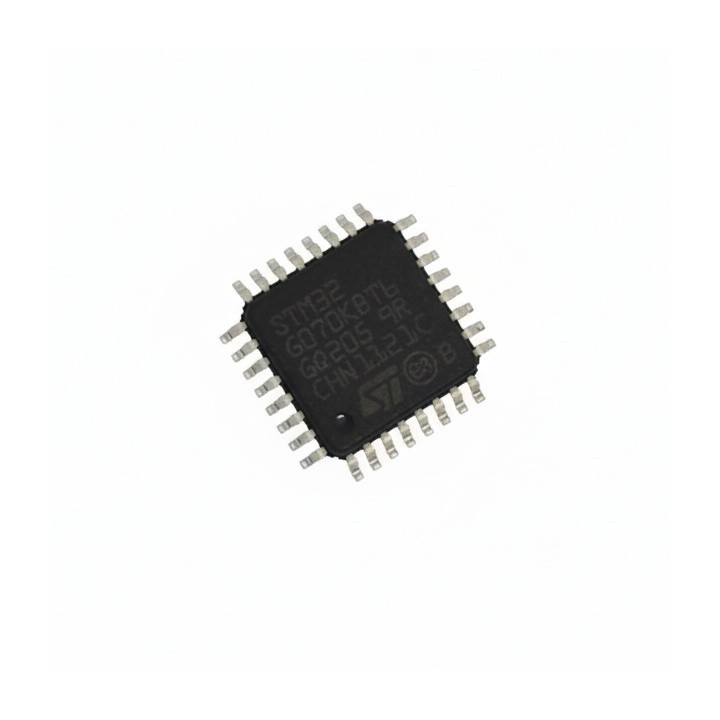

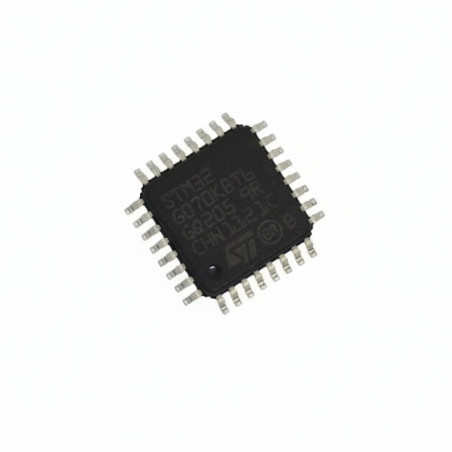

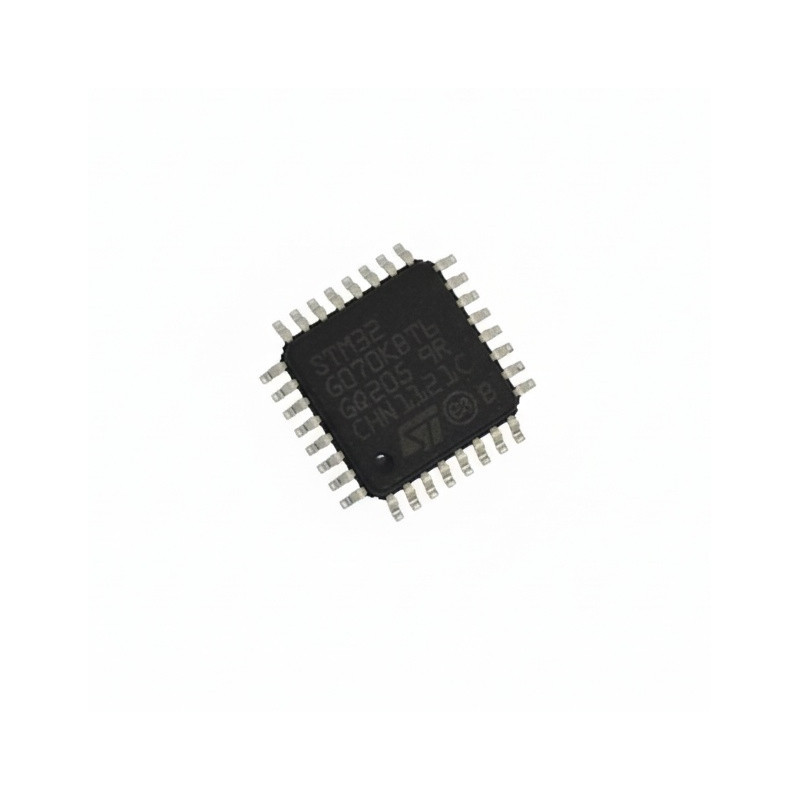

STM32G070KBT6

The STM32G070CB/KB/RB mainstream microcontrollers are based on high-performance

Arm® Cortex®-M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high

level of integration, they are suitable for a wide range of applications in consumer, industrial

and appliance domains and ready for the Internet of Things (IoT) solutions.

The devices incorporate a memory protection unit (MPU), high-speed embedded memories

(128 Kbytes of Flash program memory with read protection, write protection, and 36 Kbytes

of SRAM), DMA and an extensive range of system functions, enhanced I/Os and

peripherals. The devices offer standard communication interfaces (two I2Cs, two SPIs / one

I2S, and four USARTs), one 12-bit ADC (2.5 MSps) with up to 19 channels, a low-power

RTC, an advanced control PWM timer, five general-purpose 16-bit timers, two basic timers,

two watchdog timers, and a SysTick timer.

The devices operate within ambient temperatures from -40 to 85°C. They can operate with

supply voltages from 2.0 V to 3.6 V. Optimized dynamic consumption combined with a

comprehensive set of power-saving modes allows the design of low-power applications.

VBAT direct battery input allows keeping RTC and backup registers powered.

The devices come in packages with 32 to 64 pins.
